Game Programming in C++ Chapter2 - 배경 스크롤

산자이 마드하브 저 / 박주항 역 ❘ 에이콘



책의 소스 코드를 직접 작성해보면서 정리한 글입니다. (실습환경: windows)

책 소스 코드: GitHub - gameprogcpp/code: Game Programming in C++ Code

---

1. 배경 스크롤(background scroll) 원리

이미지를 계속 이어 붙이면 된다.

2. 텍스처(texture)

도형에 이미지를 입히는 것, 이때 사용되는 이미지를 텍스처라 한다.

배경 텍스처를 저장하기 위해서 다음과 같은 자료구조를 사용한다.

struct BGTexture
{
	SDL_Texture* sdl_texture;
	float x, y;
	float scroll_speed;
};



3. 소스 코드

chapter1과 동일하다.

• Main.cpp
• Game.hpp
• Game.cpp

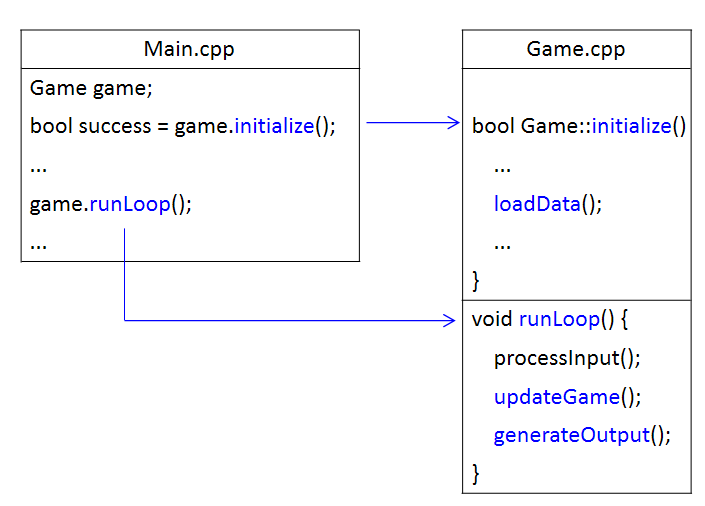

4. 프로그래 흐름

• loadData()에서 png 파일을 이용해서 texture를 만든다.
• updateGame()에서 delta time을 이용해 배경 스크롤을 진행한다.
• generateOutput()에서 update된 세상을 그리면 된다.

5. Main.cpp

#include "Game.hpp"

int main(int argc, char** argv)
{
	Game game;

	bool success = game.initialize();

	if (success)
	{
		game.runLoop();
	}

	game.shutdown();
	return 0;
}





6. Game.hpp

chapter1과 비교하면, Texture 관련 함수와 변수들이 추가되었다.

• 새로운 자료구조: BGTexture
• 새로우 함수: loadData(), getTexture(), setTexture(), deleteTexture(), drawTexture()
• BGTexture 관리를 위한 STL

#include <string>
#include <vector>
#include <unordered_map>
#include "SDL3/SDL.h"

struct BGTexture
{
	SDL_Texture* sdl_texture;
	float x, y;
	float scroll_speed;
};

class Game
{
public:
	Game();
	bool initialize(int w = 1024, int h = 768);
	void runLoop();
	void shutdown();

private:
	void processInput();
	void updateGame();
	void generateOutput();
	bool loadData(); // loading the background imamge and converting to image surface to texture
	SDL_Texture* getTexture(const std::string& fileName); //convert to image surface to texture
	BGTexture* setBGTexture(SDL_Texture* sdl_texture, float x, float y, float scroll_speed);
	void unloadData();
	void drawTexture();

	SDL_Window* _sdl_window;
	int _window_w;
	int _window_h;
	bool _running;
	SDL_Renderer* _sdl_renderer;
	Uint64 _ticks_cnt;
	std::unordered_map<std::string, SDL_Texture*> _textures; //texture list
	std::vector<BGTexture*> _bg_space_textures; //background
	std::vector<BGTexture*> _bg_star_textures; //background
};



7. Game.cpp

#include "Game.hpp"
#include "SDL3_image/SDL_image.h"

Game::Game() : _sdl_window(nullptr), _window_w(1024), _window_h(768), _running(true), _sdl_renderer(nullptr), _ticks_cnt(0)
{
}

//initialize SDL and Create window
bool Game::initialize(int w, int h)
{
	bool sdl_result = SDL_Init(SDL_INIT_VIDEO);
	if (!sdl_result)
	{
		SDL_Log("Unable to initialize SDL[%d]: [%s]", sdl_result, SDL_GetError());
		return false;
	}

	_sdl_window = SDL_CreateWindow(
		"Game Programming in C++ (Chapter 2)", // Window title
		w,		// Width of window
		h,		// Height of window
		0		// Flags (0 for no flags set)
	);

	if (_sdl_window == nullptr)
	{
		SDL_Log("Failed to create window: %s", SDL_GetError());
		return false;
	}


	_sdl_renderer = SDL_CreateRenderer(
		_sdl_window,
		NULL // the name of rendering driver to init, if it is NULL, SDLL will choose one.
	);

	if (_sdl_renderer == nullptr)
	{
		SDL_Log("Failed to create renderer: %s", SDL_GetError());
		return false;
	}

	if (!loadData())
	{
		SDL_Log("Failed to load data");
		return false;
	}

	_window_w = w;
	_window_h = h;

	return true;
}

void Game::runLoop()
{
	while (_running)
	{
		processInput();
		updateGame();
		generateOutput();
	}
}

void Game::shutdown()
{
	unloadData();
	SDL_DestroyRenderer(_sdl_renderer);
	SDL_DestroyWindow(_sdl_window);
	SDL_Quit();
}

void Game::processInput()
{
	SDL_Event event;
	while (SDL_PollEvent(&event)) //if event is occurred in queue, it will return TRUE
	{
		switch (event.type)
		{
		case SDL_EVENT_QUIT: //windows x icon is pressed
			_running = false;
			break;
		}
	}

	const bool* state = SDL_GetKeyboardState(NULL);
	if (state[SDL_SCANCODE_ESCAPE]) //Esc is pressed
	{
		_running = false;
	}
}

void Game::updateGame()
{
	Uint64 current_time = SDL_GetTicks();
	while (current_time < _ticks_cnt + 16) //16ms
	{
		current_time = SDL_GetTicks();
	}

	//delta time = last frame - current frame
	//converting to per second
	float delta_time = (SDL_GetTicks() - _ticks_cnt) / 1000.0f;

	//delta time validation
	//maximum delta time is 0.05 second
	if (delta_time > 0.05f)
	{
		delta_time = 0.05f;
	}

	//backgroud scrolling implementation
	for (auto& bg : _bg_space_textures)
	{
		// Update the x offset
		bg->x += bg->scroll_speed * delta_time;

		// If this is completely off the screen, reset offset to
		// the right of the last bg texture
		if (bg->x < -_window_w)
		{
			bg->x = static_cast<float>((_bg_space_textures.size() - 1) * _window_w - 1);
		}
	}

	for (auto& star : _bg_star_textures)
	{
		// Update the x offset
		star->x += star->scroll_speed * delta_time;
		// If this is completely off the screen, reset offset to
		// the right of the last bg texture
		if (star->x < -_window_w)
		{
			star->x = static_cast<float>((_bg_star_textures.size() - 1) * _window_w - 1);
		}
	}

	_ticks_cnt = SDL_GetTicks(); // update tick count for next frame

}

void Game::generateOutput()
{
	drawTexture();
	SDL_RenderPresent(_sdl_renderer);
}

SDL_Texture* Game::getTexture(const std::string& fileName)
{
	SDL_Texture* texture = nullptr;
	// Is the texture already in the map?
	auto iter = _textures.find(fileName);
	if (iter != _textures.end())
	{
		texture = iter->second;
	}
	else
	{
		// Load from file
		SDL_Surface* surface = IMG_Load(fileName.c_str());
		if (!surface)
		{
			SDL_Log("Failed to load texture file %s", fileName.c_str());
			return nullptr;
		}

		// Create texture from surface
		texture = SDL_CreateTextureFromSurface(_sdl_renderer, surface);
		SDL_DestroySurface(surface);
		if (!texture)
		{
			SDL_Log("Failed to convert surface to texture for %s", fileName.c_str());
			return nullptr;
		}

		_textures.emplace(fileName.c_str(), texture);
	}
	return texture;
}

BGTexture* Game::setBGTexture(SDL_Texture* texture, float x, float y, float scroll_speed)
{
	BGTexture* bg = new BGTexture;
	bg->sdl_texture = texture;
	bg->x = x;
	bg->y = y;
	bg->scroll_speed = scroll_speed;
	return bg;
}

bool Game::loadData()
{
	auto initializeBGTexture = [this](const std::string& file, float x, float y, float scroll_speed, std::vector<BGTexture*>& bg_textures) -> bool {
		SDL_Texture* texture = getTexture(file);
		if (texture == nullptr)
		{
			SDL_Log("Failed to load %s", file.c_str());
			return false;
		}
		BGTexture* bg = setBGTexture(texture, x, y, scroll_speed);
		bg_textures.emplace_back(bg);
		return true;
	};

	if(!initializeBGTexture(
		"Assets/Farback01.png",
		0, 0, -100.0f,
		_bg_space_textures))
		return false;

	if(!initializeBGTexture(
		"Assets/Farback02.png",
		(float)_window_w, 0, -100.0f,
		_bg_space_textures))
		return false;

	if(!initializeBGTexture(
		"Assets/Stars.png",
		0, 0, -200.0f,
		_bg_star_textures))
		return false;

	if(!initializeBGTexture(
		"Assets/Stars.png",
		(float)_window_w, 0, -200.0f,
		_bg_star_textures))
		return false;

	return true;
}

void Game::unloadData()
{
	if (!_textures.empty())
	{
		for (auto t : _textures) SDL_DestroyTexture(t.second);
		_textures.clear();
	}

	if (!_bg_space_textures.empty())
	{
		for (auto bg : _bg_space_textures) delete bg;
		_bg_space_textures.clear();
	}

	if (!_bg_star_textures.empty())
	{
		for (auto star : _bg_star_textures) delete star;
		_bg_star_textures.clear();
	}
}

void Game::drawTexture()
{
	// Draw each background texture
	for (auto& bg : _bg_space_textures)
	{
		SDL_FRect r;
		r.w = static_cast<float>(_window_w);
		r.h = static_cast<float>(_window_h);
		r.x = bg->x;
		r.y = bg->y;

		// Draw this background
		SDL_RenderTexture(
			_sdl_renderer,
			bg->sdl_texture,
			nullptr,
			&r
		);
	}

	for (auto& star : _bg_star_textures)
	{
		SDL_FRect r;
		r.w = static_cast<float>(_window_w);
		r.h = static_cast<float>(_window_h);
		r.x = star->x;
		r.y = star->y;

		// Draw this background
		SDL_RenderTexture(
			_sdl_renderer,
			star->sdl_texture,
			nullptr,
			&r
		);
	}
}



7. 결과

excution program
